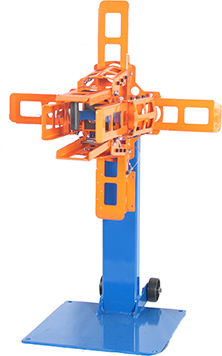

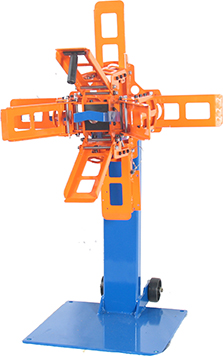

Recoiling device type r41 R41

Manual cable winding device type R41, brand LOIMEX, to make coils of cable with the coiler unit, which the core and front crosspiece being articulated for the quick extraction of the cable, due to the decrease of the inside core and the front blades being completely opened.

Range of application
To wind coils of cable with a maximum weight of 150 kg.
Features
  • Sturdy frame for stationary mounting
  • Two wheels to transport easily the machine
  • Heavy base plate.
  • Coiling shaft mounted in double ball bearings.
  • Coiler RD30H type, with a 800 mm exterior diameter
  • Two sizes for the core 350 & 420 mm.
  • Useful inside width of 200 mm.

Optional elements for the coiler device:
Four additional width regulator, type RD30H-20, one on each front crosspiece, to help to reduce the width of the inside cone with four different sizes, 200, 150, 120 & 90 mm.

R41
R41H
Cable measurer Ø mm. - 2-30 Ø mm
Maximum capacity 150 Kg 150
Dimensions 800x680x1.300 mm 800x680x1.300 mm
Weight Kg 70 75



Optionals

RD30H-20
Sectores separadores
Four additional width regulator, type RD30H-20, one on each front crosspiece, to help to reduce the width of the inside cone with four different sizes, 200, 150, 120 & 90 mm.
