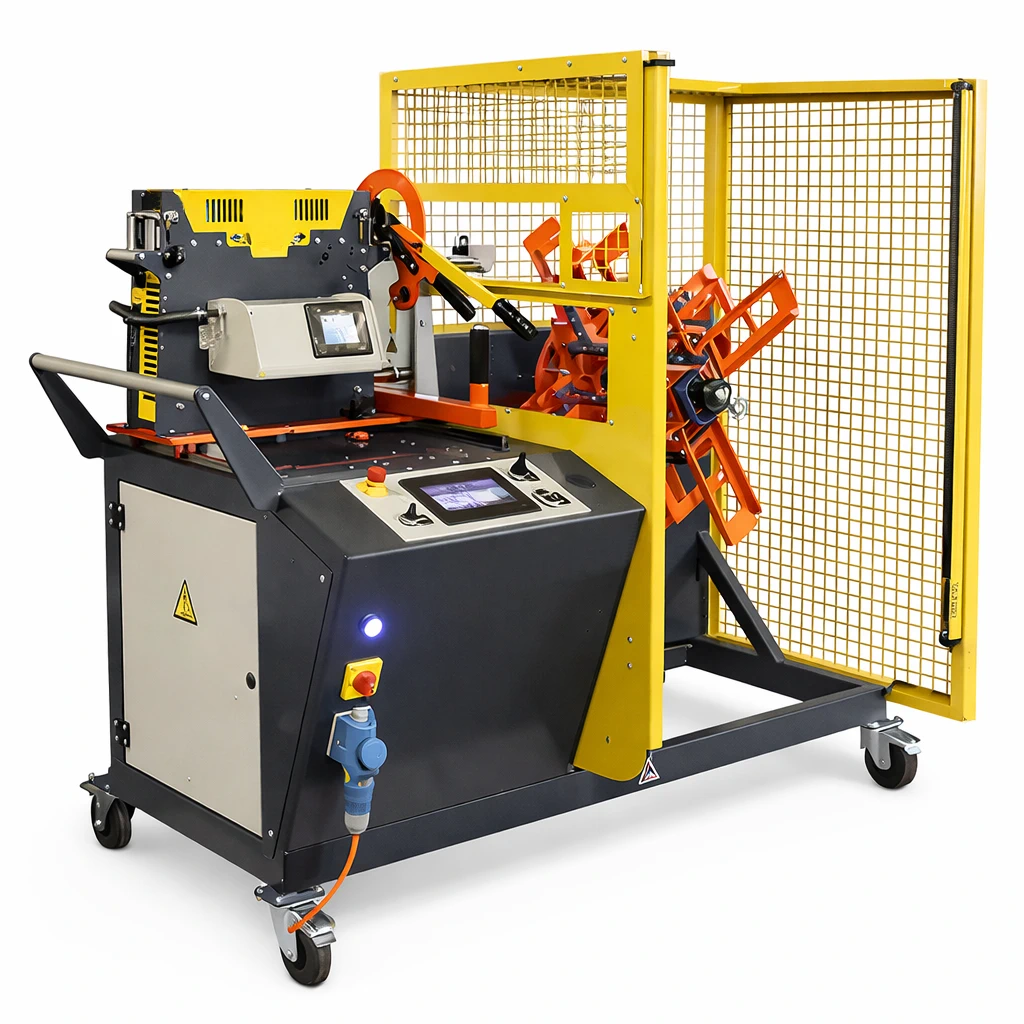

D30

The measuring and coiling machines type D30 are used when cables, conductors, etc. have to be uncoiled from original coils, reels on jacks or reels in racks and to be measured at the same time. The complete working process is carried out with one power source.
Machines built using European Security normative CE

Range of application

With this measuring and coiling machine, type D30, you can; make coils or fill small wooden drums of cable with a maximum weight of 200 kg and measuring cable of a diameter between 1 to 40 mm.

Features

• Sturdy frame construction with steering wheels.
• Mechanical counter M410, touch panel optional.
• Coiler device RD30, to make coils of cable up to 800 Ø.
• For small drums of 800 Ø and 350mm width
• Slow ramp and adjustable speed regulator with the use of a frequency inverter.
• Safety cage with automatic switch lock following the CE securities directive
