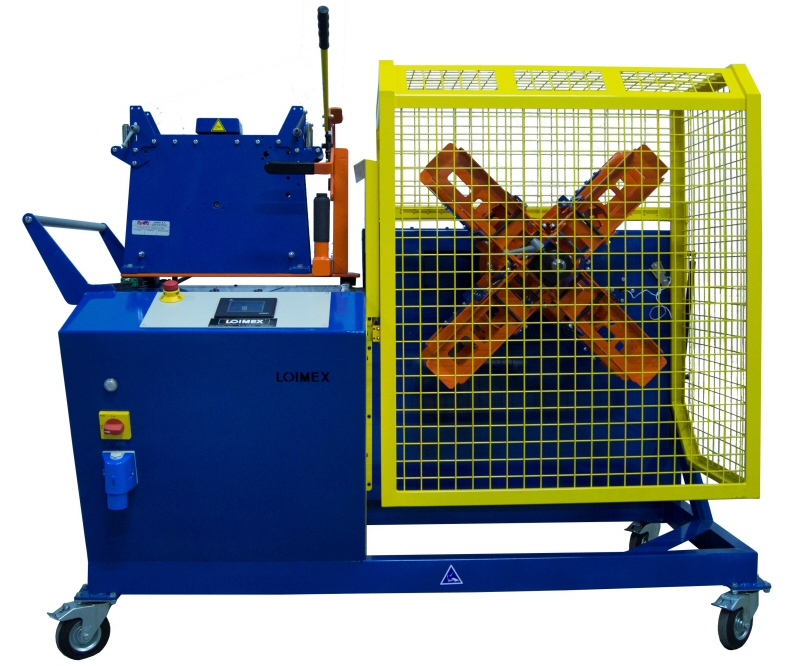

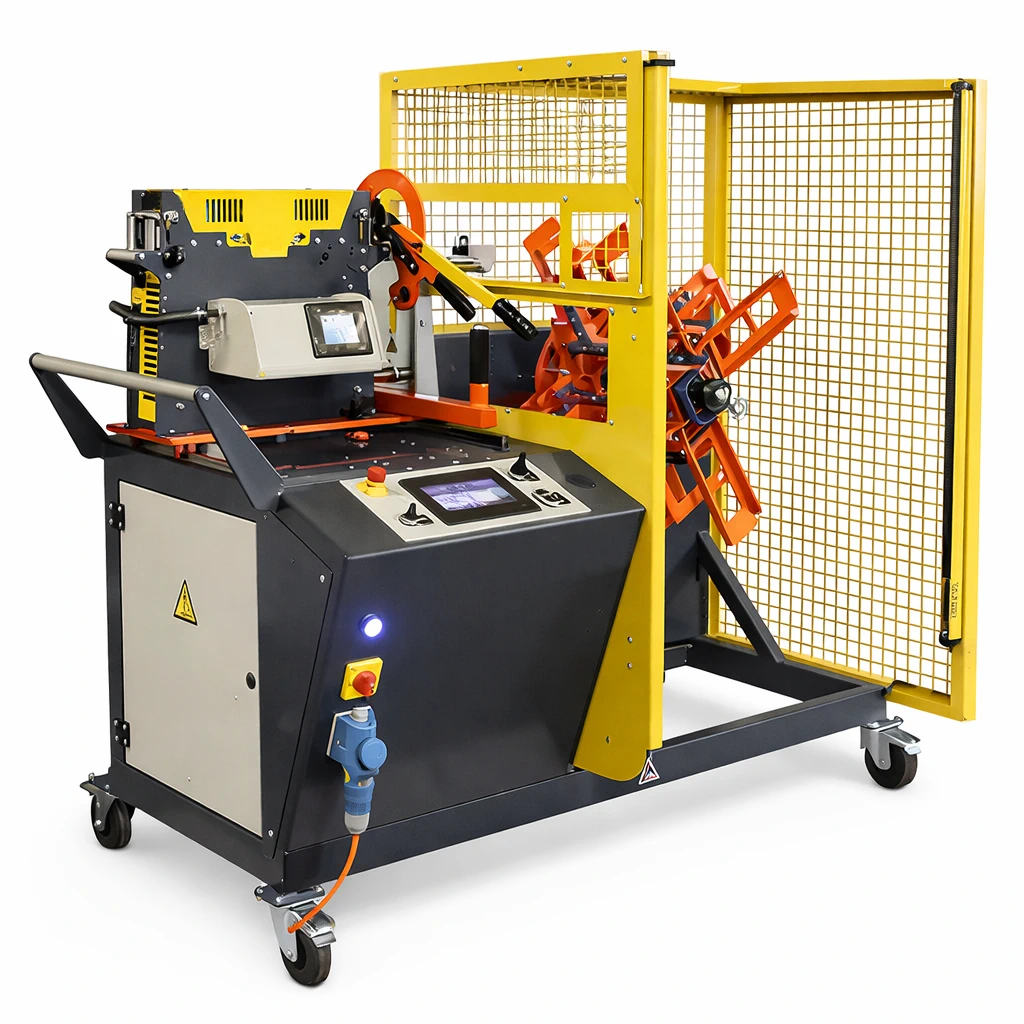

Measuring and coiling machines D30

The measuring and coiling machines type D30 are used when cables, conductors, etc. have to be uncoiled from original coils, reels on jacks or reels in racks and to be measured at the same time. The complete working process is carried out with one power source.
Machines built using European Security normative CE

Range of application
With this measuring and coiling machine, type D30, you can; make coils or fill small wooden drums of cable with a maximum weight of 200 kg and measuring cable of a diameter between 1 to 40 mm.
Features
  • Sturdy frame construction with steering wheels.
  • Mechanical counter M410, touch panel optional.
  • Coiler device RD30, to make coils of cable up to 800 Ø.
  • For small drums of 800 Ø and 350mm width
  • Slow ramp and adjustable speed regulator with the use of a frequency inverter.
  • Safety cage with automatic switch lock following the CE securities directive
D30

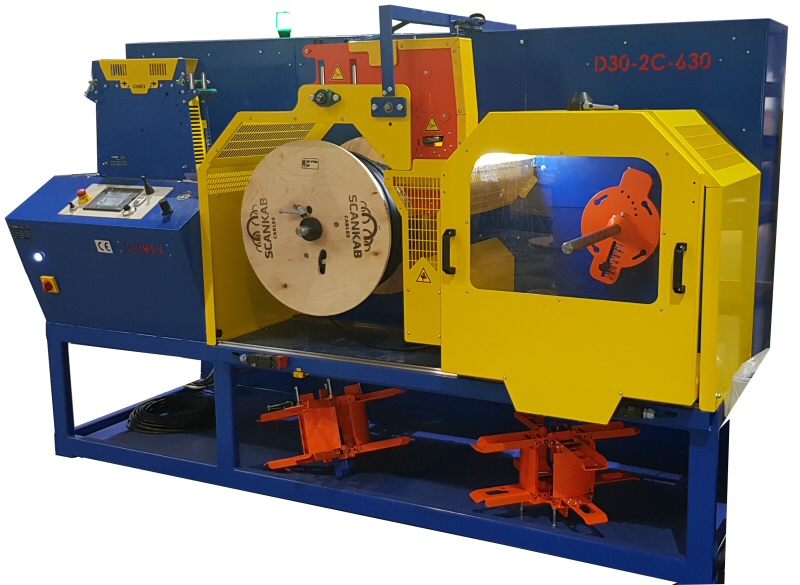

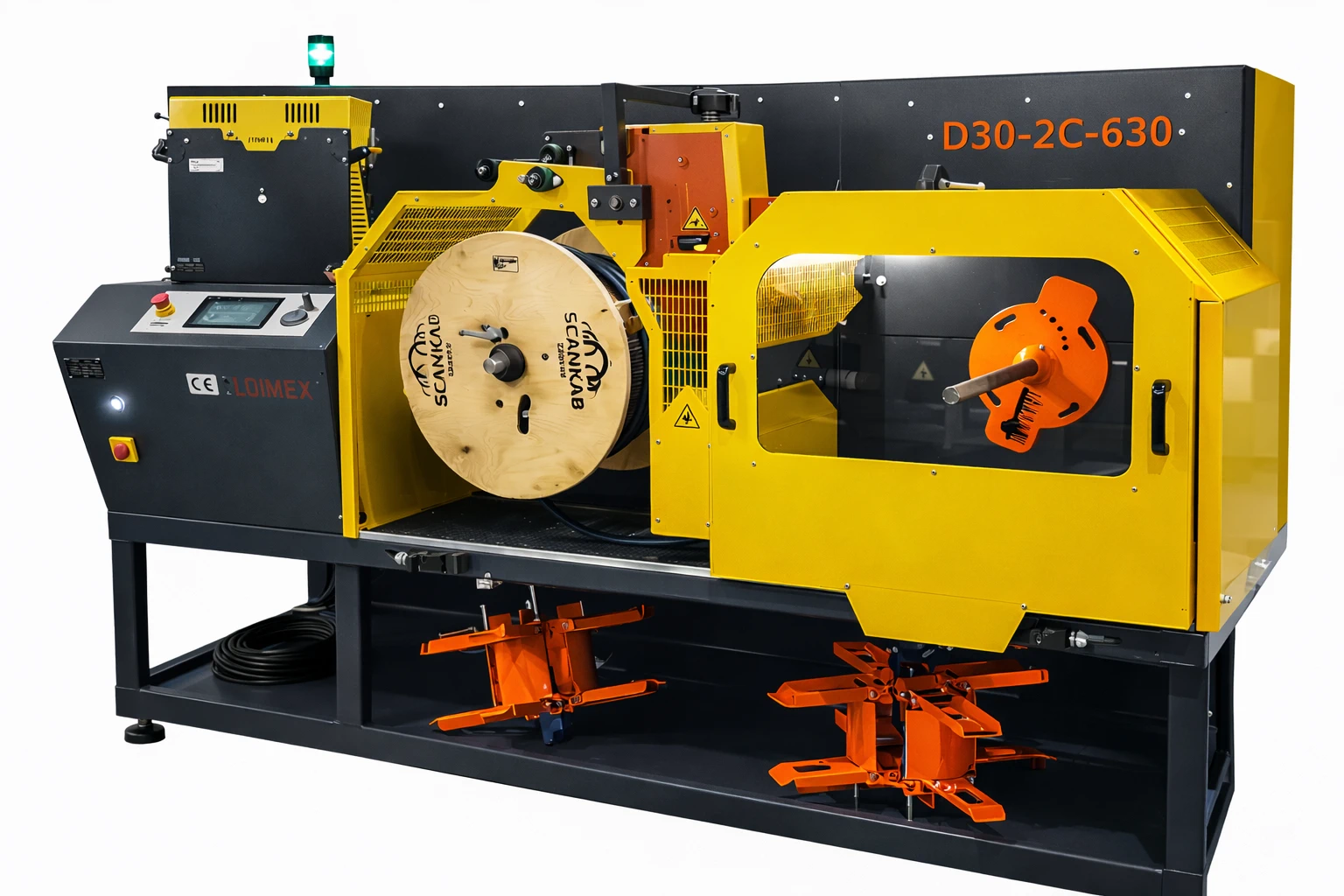

 D30-2C
Manual distribution tray cable -
Transport wheel -
Measuring head M40  M40
Mechanical counter type M410
Coiling device for coils of cable
Ø exterior mm 800 600
Ø maximum core mm 420 250
Ø minimum core mm 350 215
width mm 200 150
Maximun weight kg. 150 50
Reels or small drums
Ø exterior mm 800 600
width mm 350 350
Maximun weight kg. 200 200
Variable Frequency Drive
Speed ( R.P.M.) 15-80 (<200) 30-200
Power kW (HP) 1,1(1,5) 1,1(1,5)
Torque Nm. 221 221
Voltage (V / Hz) 230/50-60 ( opt 220III V ) 230/50-60 ( opt 220III V )
Fusing 1x16 A 1x16 A
Dimensions



Optionals

RD20
for making coils of cable, width 150mm / 600mm Ø
This coiler device enables to wind coils of cable without using a wooden drum, build with a front and rear cross piece with four blades and a hub with four sectors.
Made to easily tie the coil and to remove the coil of cable effortless
CD-TOUCH-NB5
touch panel counter, 5.7inches for machines type D and 7 series
Capacity of up to 9,999.99 meters or in inches, touch colour screen of with measurement indication, pre-length sets and machine status. Automatic speed dropping, before reaching the measure which assures a perfect measurement.

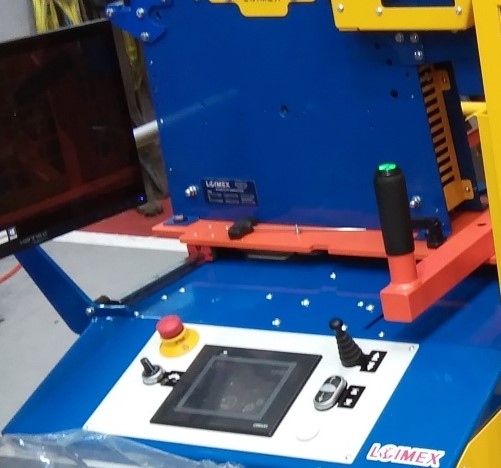

REL16D
for automatically lay the cable in the drum (D30)
Highly precise and easy to manage mechanism that serves to automatically distribute the cable during winding.
 BRD40to guide the cable in type D and DTR machines, 40mm Ø
 BR-LPLaser pointer to help to wind the cable
Cable cutters
The cable cutters are integrated in the cable meter and facilitate the use of the same in the machine, providing greater safety and quality in the cable cut. Depending on the meter and the type of cable to be cut, there are different solutions for coupling the meter.
 BRD-S35to cut electric cables from 1 to 35 mm Ø
 SH40for cutting cable up to 40mmØ Cu-Al
 TD40for cutting steel wire rope up to 22mm Ø
PC30BF
Protection Safety Light Curtain
Protection Safety Light Curtain in finger resolution and fast response, is an optional accessory for D30 type machines. Compliance with the European Machinery Safety Regulations according to the CE marking..
MP43X300
Motorized Platform
Motorized platform and automatically movable along the reel rack. It allows the incorporation of a LOIMEX winding machine with full integration with SoftWinding software for the management of your ERP software to cut the orders and control the stock.
