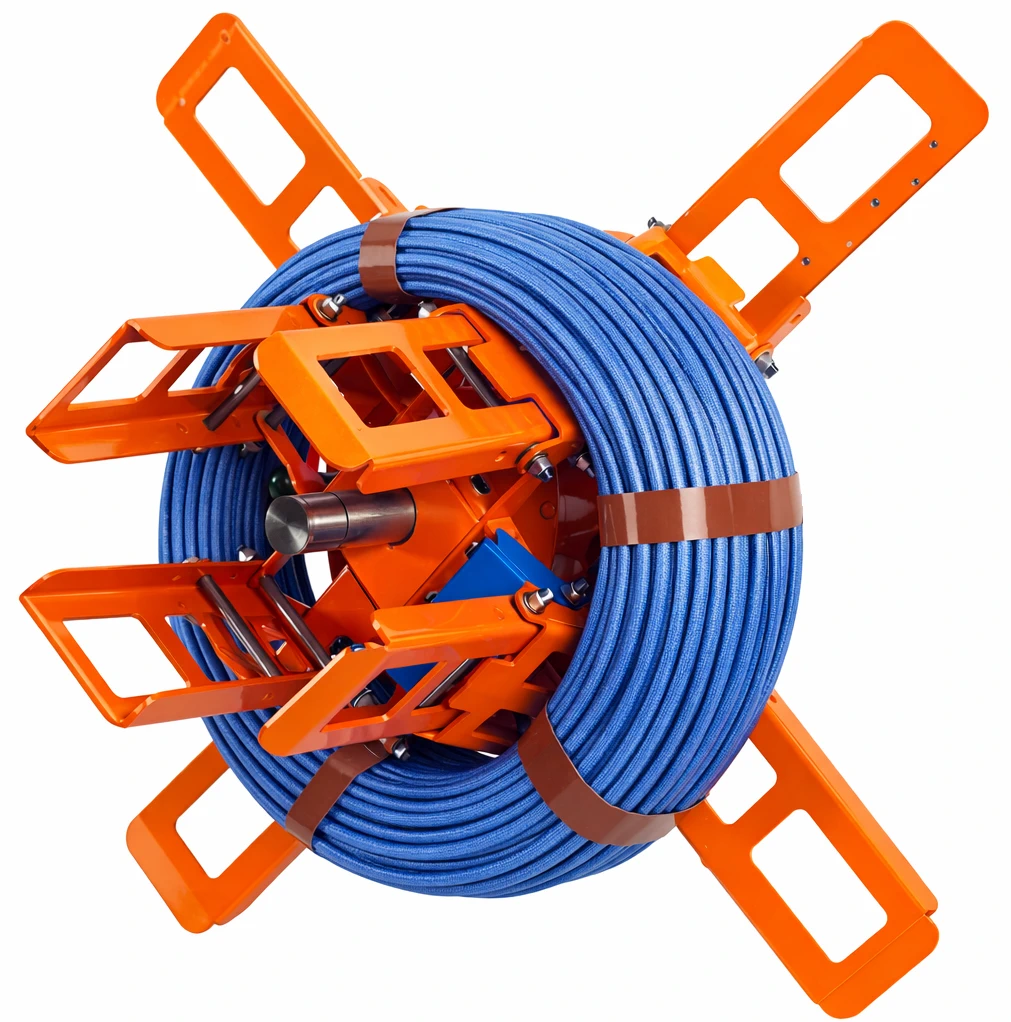

This coiler device enables to wind coils of cable without using a wooden drum, build with a front and rear cross piece with four blades and a hub with four sectors.
Made to easily tie the coil and to remove the coil of cable effortless

Range of application

For making coils of cable without using drums

Features

• To fill a coil of cable of a maximum 800 mm de Ø
• Hub of 350 / 420 mm de Ø
• Useful interior width 200 mm
• Four separators to regulate the interior width, mm: 200-150-120-90
• Front crosspiece being articulated for the quick extraction of the cable
• Single part to attach the beginning of the cable
• Device designed to be attach to a D30 machine
• Coiling device has a maximum capacity of 150 Kg
