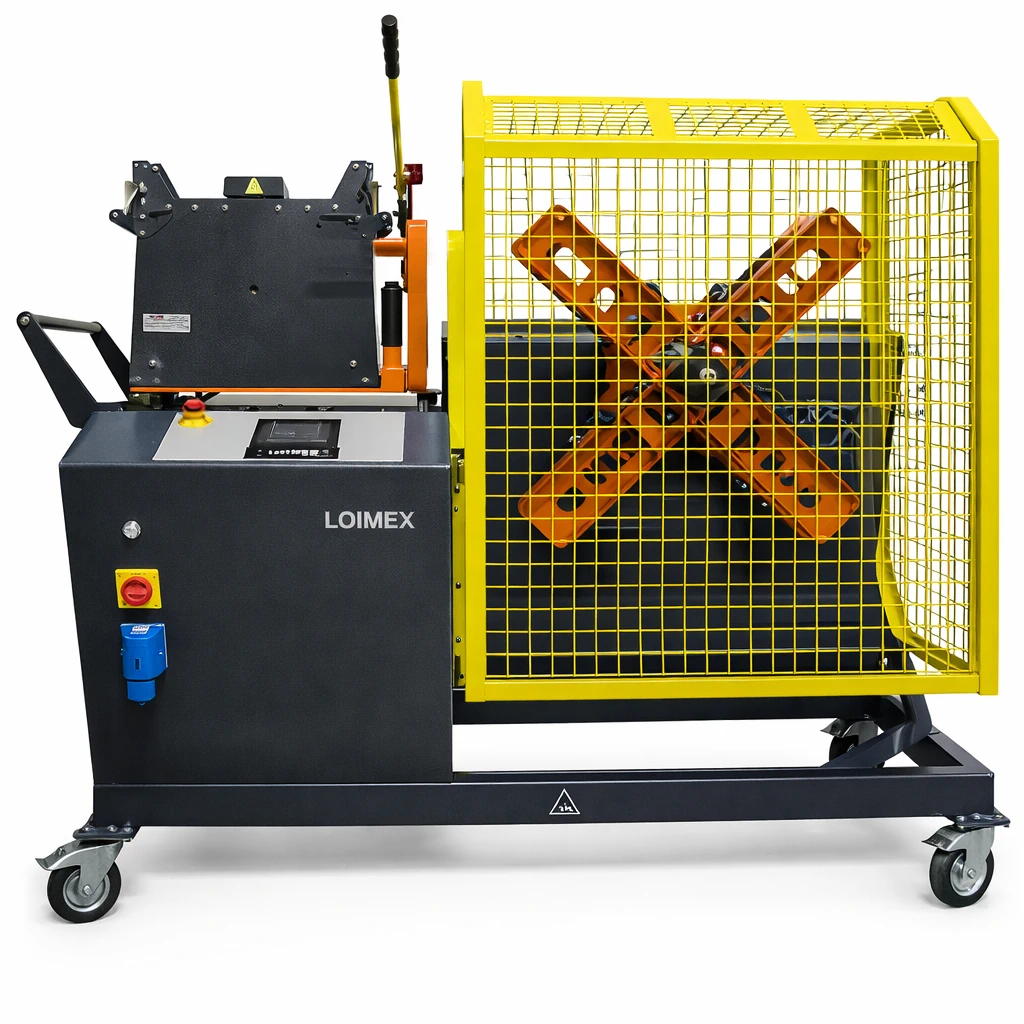

Reeling and coiling machine DTR80

Videos

The measuring and coiling machines type DTR are used when cables, conductors, etc. have to be uncoiled from original coils, reels on jacks or reels in racks and to be measured at the same time. The complete working process is carried out from one power source.
Machines built using European Security normative CE

Range of application
With this measuring and coiling machine, type DTR, you can; make coils or fill small wooden drums of cable with a maximum weight of 400 kg and measuring cable of a diameter between 1 to 60 mm.
Features
  • Sturdy frame construction with steering wheels.
  • Mechanical counter M410, touch panel optional.
  • Coiler device RD80, to make coils of cable up to 800 Ø.
  • For drums up to 800mm Ø and 620 mm width
  • Hydraulic cylinder with a hand pump for lifting the drums
  • Electro-hydraulic optional to fast operation for lifting and cutting cable
  • Slow ramp and adjustable speed regulator with the use of a frequency inverter.
  • Safety cage with automatic switch lock following the CE securities directive
DTR80
 DTR100
Drum/Reel
Ø mm minimum 400 600
Ø mm maximum 800 1 000
Maximum width mm 620 710
Maximum weight 400 kg 800 Kg
Ø axle 50 mm 60 mm
Drive
Power kW (HP) 1,1 Kw 1,5 Kw (2)
Speed ( R.P.M.) 15-80 r.p.m. 15-80 r.p.m.
Voltage (V / Hz) 230V 50-60Hz 230V 50-60 Hz
Torque Nm. 221Nm 383 Nm
Fusing 1x16A 1x16A
Accesories
Coiling device included RD80  RD100
Transport wheel

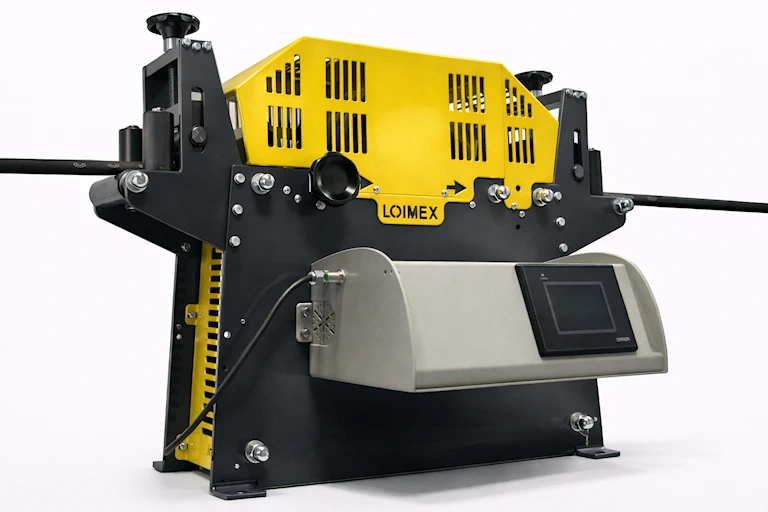

Measuring head M40 M40- M60
Mechanical counter type M410 M410  M410
Manual hydraulic lifting
Hydraulic cylinder lift O O
Protection according to EC regulations
Dimensions
(L x W x H) cage closed 1.806x1.583x1.955 mm 1.806x1.583x1.955 mm
(L x W x H) cage opened 1.806x1.583x2.224 mm 1.806x1.583x2.224 mm
Weight Kg 450 500



Optionals

Cable length measuring
Cable length measuring equipment must offer accurate measurements, both for the cable supplier and for the customer.
 MH30for cables from 1 to 30 mm de Ø
 M20for round cables from 1 to 20 mm Ø.
 M20/Sfor wires and steel cables from 1 to 8 mm Ø.
 M40/Sfor wires and steel cables from 1 to 22 mm Ø
DTR-HE/S
Hydraulic elevation, optional element for the DTR machines
The lifting and lowering of the reel and the coil is done hydraulically by means of a cylinder and driven by a hydraulic motor-pump with electro valves.
DTR-RS45.25
shaft to coil onto small spools
Accessory for our winding machine type DTR, brand LOIMEX, with an additional motor in the machine and an exchangeable shaft input.
It is supplied with a 25mm diameter exchangeable shaft with a dragging plate, to use any kind of spools with a maximum diameter of 450mm and with a maximum width of 350mm.
Cable cutters
The cable cutters are integrated in the cable meter and facilitate the use of the same in the machine, providing greater safety and quality in the cable cut. Depending on the meter and the type of cable to be cut, there are different solutions for coupling the meter.
 BRD-S35to cut electric cables from 1 to 35 mm Ø
 SH40for cutting cable up to 40mmØ Cu-Al
 SH41for cutting cable up to 40mmØ Cu-Al - Double blades
 TD40for cutting steel wire rope up to 22mm Ø
Cable traverse layering
 REL26Dfor automatically lay the cable in the drum (DTR)
 BRD20to guide the cable in type D and DTR machines, 20mm Ø
 BRD40to guide the cable in type D and DTR machines, 40mm Ø
 BR-LPLaser pointer to help to wind the cable
Others
 PL20dancing arm for measurer M20
MP43X300
Motorized Platform
Motorized platform and automatically movable along the reel rack. It allows the incorporation of a LOIMEX winding machine with full integration with SoftWinding software for the management of your ERP software to cut the orders and control the stock.
